Tomoe Valve USA - 507V Control Butterfly Valve

Control Valves

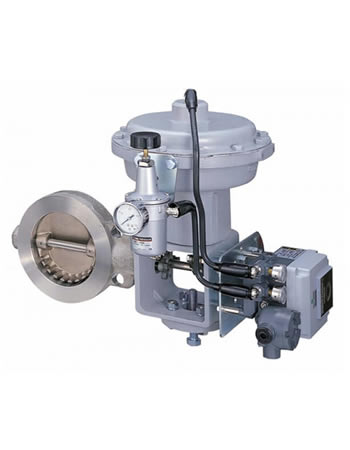

507V Control Butterfly Valve

Rotary Control Valve for high temperature fluids up to 400°C.

Designed exclusively for the regulation of fluids, the 507V Control Butterfly Valve range provides:

  • High rangeability
  • Reduced dynamic torque
  • Low noise levels
  • Anti-cavitation
  • Wide temperature range


Butterfly Valve Specifications
Download Tomoe Valve USA - 507V Control Butterfly Valve  Specs
Size Range: DN50 - DN400 (2" - 16")
Pressure Rating: Class 150, Class 300
Body Patterns: Wafer
Body Seat: None
Body Materials: WCB, 316SS
Disc Materials: WCB, 316SS
Temperature Rating: -50°C to +400°C
Flange Standards: ANSI150/300, PN10/PN16/PN25, JIS 10K/16K/20k
Operation: Manual, Electric, Pneumatic
